- Product Details
PP Interlocking Drainage Mat is a high load, heavy duty, anti slippery, corrosion resistant and oil resistant drainage surface mat.

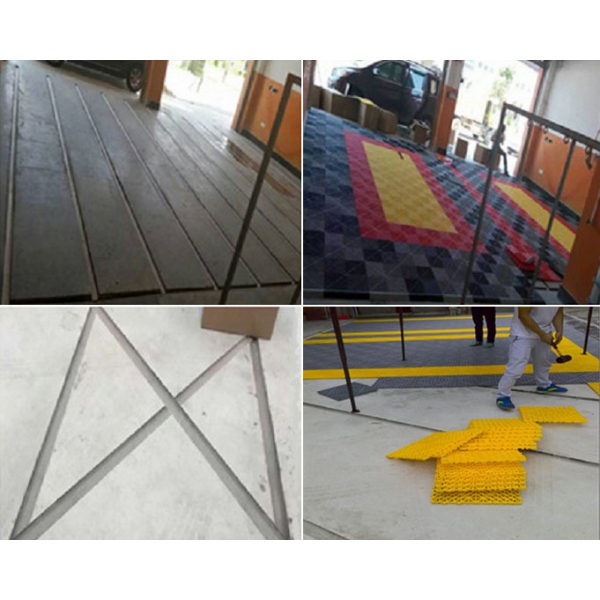

PP Drainage mat is frequently used in high traffic facilities such as car washing facilities as the floor drainage solution. Interlocking drainage mat can be easily constructed on top of floor drainage channels to facilitate water reclamation and drainage functions.
PP Interlocking Drainage Mats are made from virgin material of thermoplastic polymer Polypropylene (PP), also known as polypropene. PP is a very stable and recyclable material.

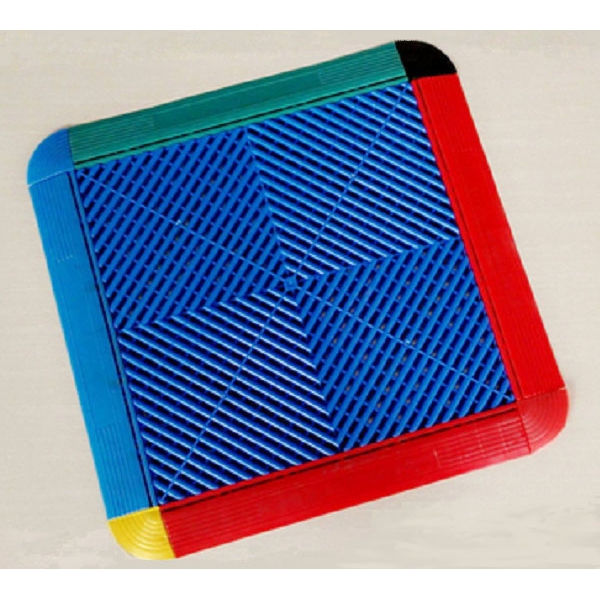

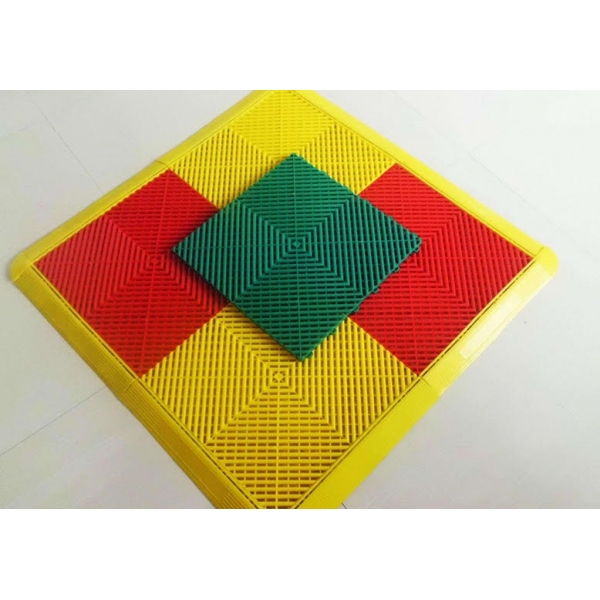

This uniquely designed drainage mat is composed of 3 components: the Drainage Tiles with the diagonal grids, the Beveled Borders and the Beveled Corners.

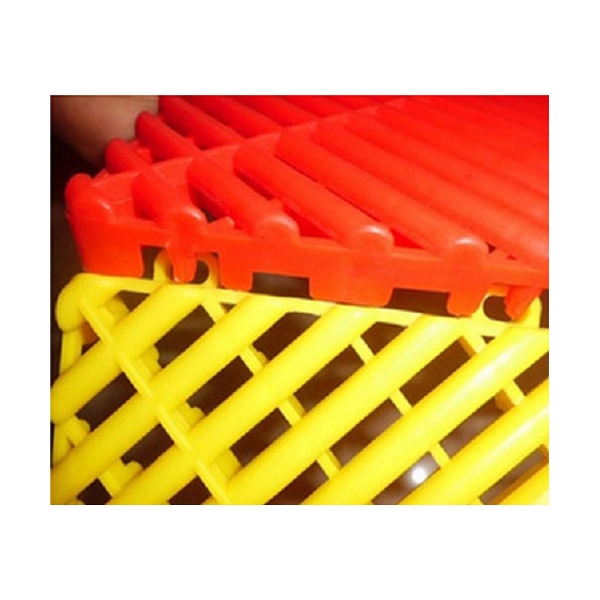

There is interlocking mechanism among all pieces to provide quick installation. All four sides of the covered area can have beveled profiles meeting the OSHA code.
|
Mat Material |
PP Polypropylene |
|
Drainage Tile Dimensions |
Approx. 400 mm x 400 mm x 18 mm 15 3/4 inch x 15 3/4 inch x 5/8 inch (Length x Width x Thickness) |
|
Beveled Border Dimensions |
Approx. 400 mm x 60 mm x 18 mm 15 3/4 inch x 2 1/2 inch x 5/8 inch (Length x Width x Thickness) |
|
Beveled Corner Dimensions |
Approx. 60 mm x 60 mm x 18 mm 2 1/2 inch x 2 1/2 inch x 5/8 inch (Length x Width x Thickness) |
|
Drainage Tile Weight |
Approx. 0.6 - 0.7 KG Each Tile 1.3 - 1.5 Lbs Each Tile |
|
Four Pieces Tiles Assembled Weight |
Approx. 3 KGs or 6.6 Lbs. 4 Pieces Assembled with 4 Border & 4 Corners |
|
Colors |
Multiple Colors: Red, Yellow, Blue, Green, Grey, Black |
|
Compression Strength |
8 Tons |
|
Temperature |
-5°- 60° |
PP interlocking Drainage Mat works well for wet or dry areas. There are multiple colors to choose and there are endless puzzle patterns to design with the PP interlocking Drainage Mat. The covered area can be quickly constructed without using tools to become a highly presentable product demonstration stage such as in automobile shows. Each individual tile is light weighted so it is easy to disassemble the mat area after use.

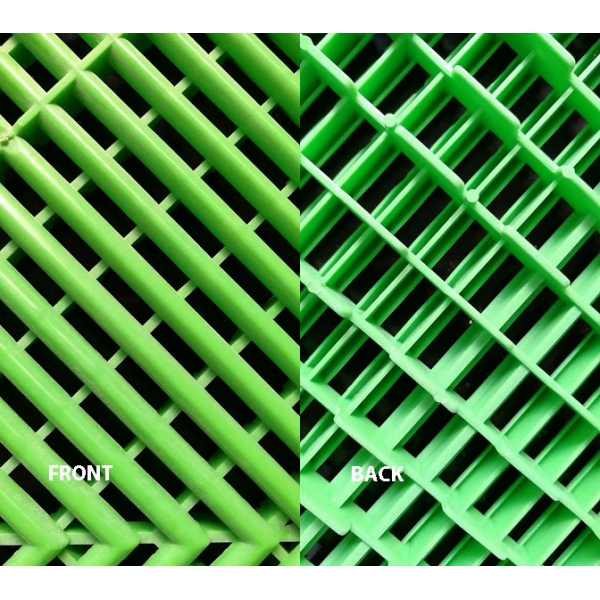

PP Drainage Mat provides high compression strength to 8 tons so it can stand the constant weight of automobiles. PP interlocking drainage tiles are uniquely designed with the diagonal grids which do not hold water on surface and provide excellent anti-slippery function.
Excellent to use covering wet and dry areas for:
Automobile Industry

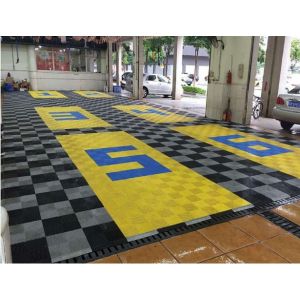

Car Washing Facility
Garage
Play Ground
Pool Side
Spa Center
Fitness Center
Veranda
Supermarket
Exhibition
Workshop
Warehouse
Balcony
Sunroom
